产品展示

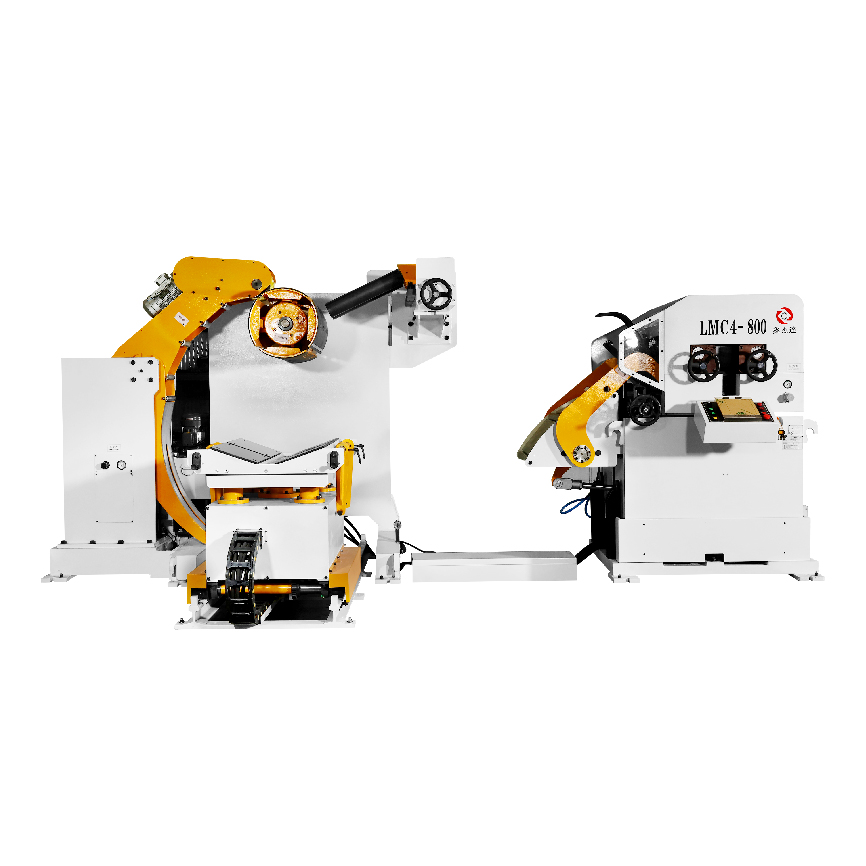

高张力厚板三合一开卷整平送料机(厚度:0.6-6.0mm)

2022/04/09 150
详细信息

型号/Model

LMC4-600F

LMC4-800F

LMC4-1000F

LMC4-1300F

料宽(mm)
Coil Width

70-600

70-800

70-1000

70-1300

料厚(mm)
Coil Thickness

0.6-6.0

主电机(KW
Main Motor

AC7.5

AC7.5

AC11.0

AC15

卷料内径(mm
Coil Inner Diameter

508/610

508/610

508/610

508/610

卷料外径(mm
Coil Outer Diameter

1400

1400

1400

1400

最大载重(kg
Max Load

5000

5000

7000

8000

最大送料长度(mm
Max Feeding Length

1000

1000

1000

1000

最大生产线速度
Max Line Speed

16

16

16

16/24

整平辊轮
Straightening Roller

6/5

6/5

6/5

6/5

送料辊轮
Feeding Roller

1

1

1

1

料架电机
Uncoiler Motor

3.7

3.7

5.5

7.5

电源
Power

AC三相380V

AC Three-phase 380V
